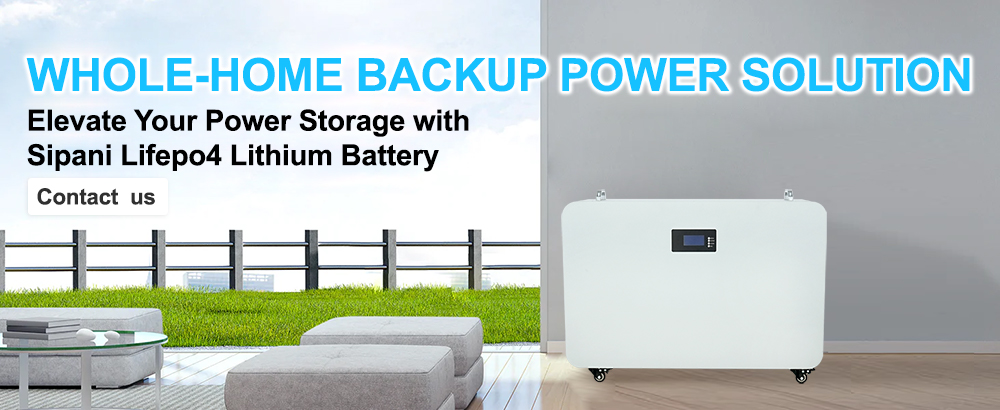

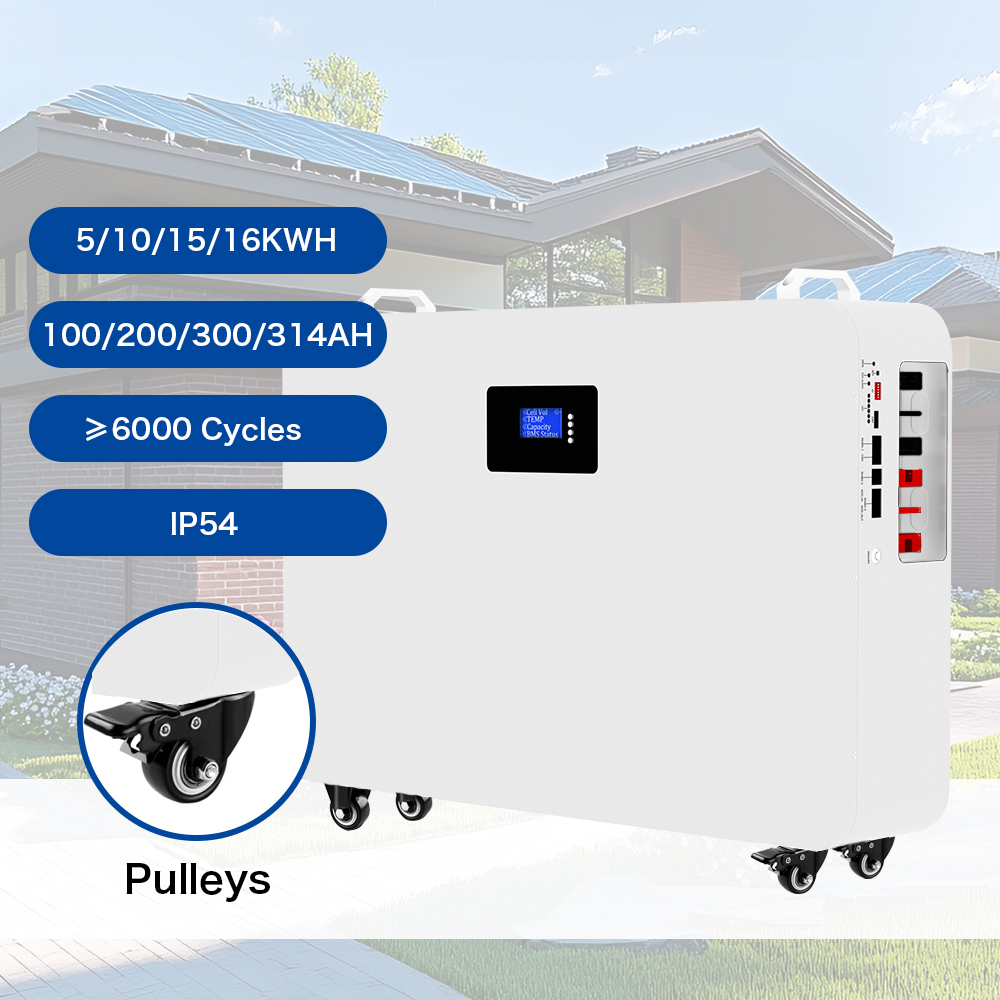

48V Batería Mobile LiFEPO4
SIPANI

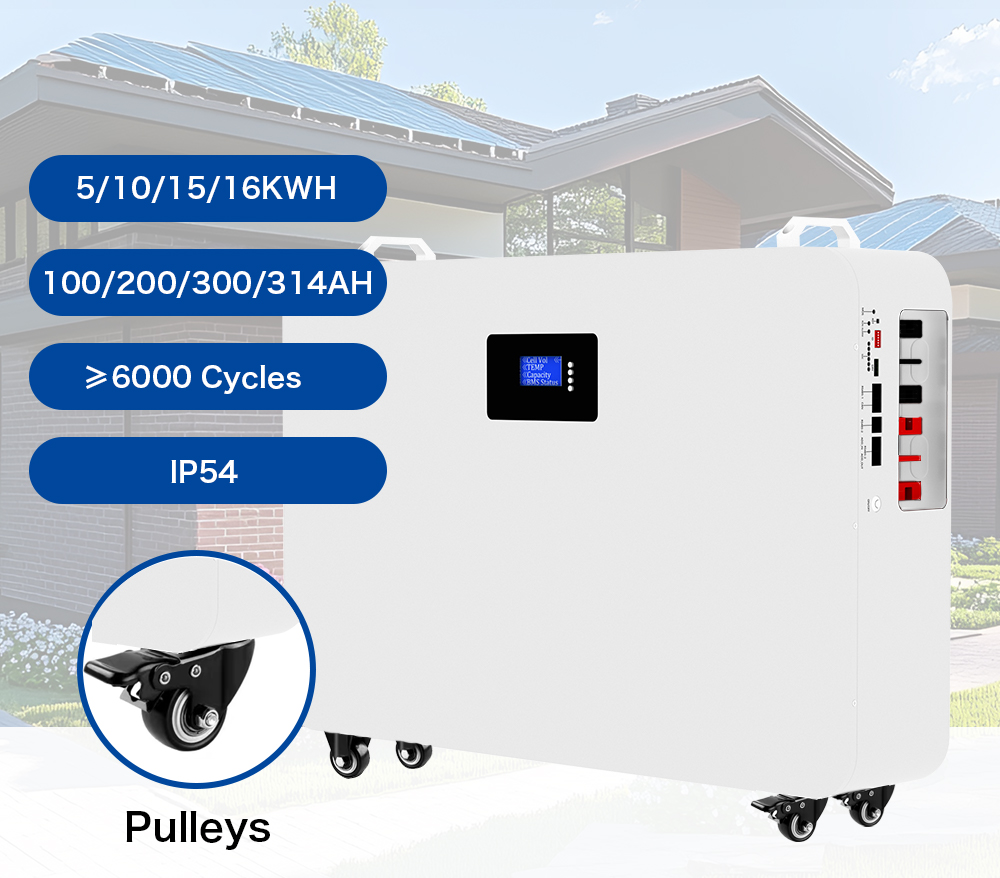

Modelo | CD-WTB512100 | CD-WTB512200 | CD-WTB512300 | CD-WTB512320 |
Tipo de batería | Lifepo4 | |||
Energía de batería nominal | 5.12kWh | 10.24kwh | 15.36kwh | 16kwh |
Capacidad nominal | 100h | 200h | 300AH | 314Ah |
Voltaje nomianl | 51.2V | |||
Voltaje de corte de carga | 57.6V | |||
Descarga del extremo - de voltaje | 46.4V | |||
Corriente de carga máxima | 100A | 200a | 200a | 200a |
Corriente de descarga máxima | 100A | 200a | 200a | 200a |
Peso | 47 kg | 86 kg | 121 kg | / |
Dimensión | 700*170*490 mm | 850*170*640 mm | 850*260*640 mm | / |
Temp.Range de trabajo | -20 - 60 ° C | |||
Temp.Range de almacenamiento | -20 - 45 ° C | |||

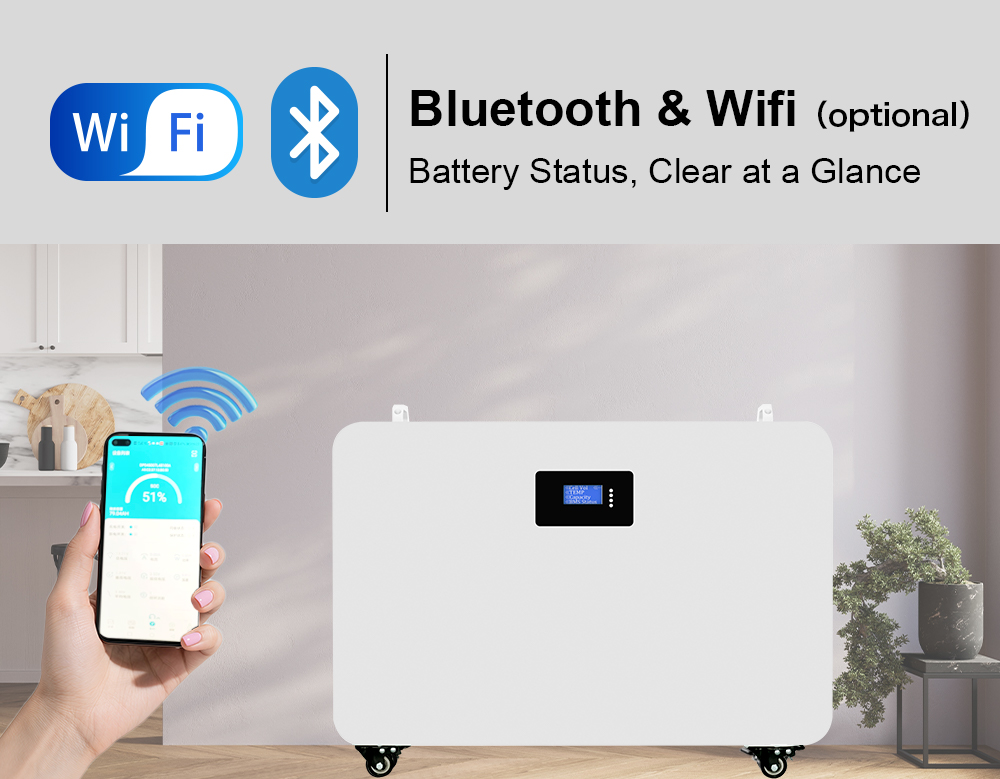

Comunicación | Can / rs485 | |||
Vida calendario | ≥6000 ciclos | |||
Nivel IP | IP54 | |||
Inversores compatibles | Deye/Growatt/Victron/SE/Luxpower/Srd/SMA/Goodwe/Sofar/Solis/Sengyinv/Must/Afore/Voltronic/Solar/Sunways |
